NetMeeting Architecture

Conferencing API

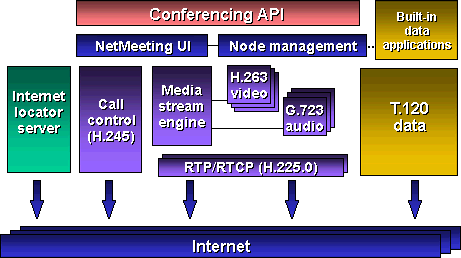

The Microsoft® NetMeeting™ conferencing API, shown in orange in the diagram above, takes advantage of all the functionality provided at lower layers, including, optionally, the NetMeeting user interface.

Back to NetMeeting Architecture chart

Control Layer

The following components, shown in blue in the diagram, tie together the NetMeeting functionality provided by lower layers.

Node Management Keeps track of conferences and conference participants.
NetMeeting UI Displays NetMeeting functionality to users.

Back to NetMeeting Architecture chart

Audio/Video Components

The following components, shown in violet in the diagram above, manage the audio and video functionality in NetMeeting.

Call Control Sets up the audio and video portion of the NetMeeting call using the H.245 standard for call control.
RTP/RTCP Handles real-time streaming of audio and video over the Internet using the H.255.0 standard.
H.263 Video Compresses and decompresses video data using a H.263-compliant video codec.
G.723 Audio Compresses and decompresses audio data using a G.723-compliant audio codec.
Media Stream Engine Coordinates capture, compression, and transmission of audio and video data. On the receiving side, this component receives, decompresses, and replays audio and video.

Back to NetMeeting Architecture chart

Data Conferencing Components

The following data conferencing components, shown in gold in the diagram above, handle transmission of data between different conference participants. This includes file transfer, application sharing, whiteboard, and chat data, as well as applications written using the NetMeeting SDK's Data Channel.

T.120 data Sends and receives data between different conference participants using the T.120 protocol for data conferencing.
Built-in data applications Use the T.120 data component to send and receive information. (These applications include chat, file transfer, and whiteboard.)

Back to NetMeeting Architecture chart

Internet Locator Server

The Internet Locator Server component, shown in teal, communicates with Internet locator servers on the network (LAN or Internet) to get directory listings and find users.

Back to NetMeeting Architecture chart

Node Management	Keeps track of conferences and conference participants.
NetMeeting UI	Displays NetMeeting functionality to users.

Call Control	Sets up the audio and video portion of the NetMeeting call using the H.245 standard for call control.
RTP/RTCP	Handles real-time streaming of audio and video over the Internet using the H.255.0 standard.
H.263 Video	Compresses and decompresses video data using a H.263-compliant video codec.
G.723 Audio	Compresses and decompresses audio data using a G.723-compliant audio codec.
Media Stream Engine	Coordinates capture, compression, and transmission of audio and video data. On the receiving side, this component receives, decompresses, and replays audio and video.

T.120 data	Sends and receives data between different conference participants using the T.120 protocol for data conferencing.
Built-in data applications	Use the T.120 data component to send and receive information. (These applications include chat, file transfer, and whiteboard.)
